| Cpu Family | C8051F35x |
| Device Core | 8051 |
| Device Core Size | 8b |
| Frequency | 50MHz |
| Interface Type | I2C/SMBus/SPI/UART |
| Program Memory Type | Flash |
| Program Memory Size | 8KB |
| Total Internal Ram Size | 768Byte |
| # I/Os (Max) | 17 |
| Number of Timers – General Purpose | 4 |
| Operating Supply Voltage (Typ) | 3V |
| Operating Supply Voltage (Max) | 3.6V |
| Operating Supply Voltage (Min) | 2.7V |
| On-Chip ADC | 8-chx24-bit |
| On-Chip DAC | 2-chx8-bit |
| Instruction Set Architecture | CISC |
| Operating Temp Range | -40C to 85C |
| Operating Temperature Classification | Industrial |
| Mounting | Surface Mount |
| Pin Count | 32 |

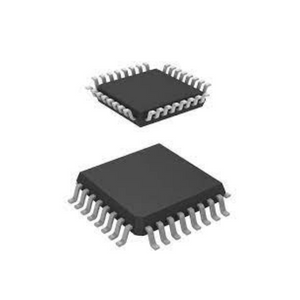

| Package Type | LQFP |
