| Model Name/Number | N/A |
| Test Voltage | N/A |
| Range | N/A |
| Brand | Fluke |
| Model | 1550C |
| Usage | Laboratory |
Evaluate the trends, eliminate the doubt

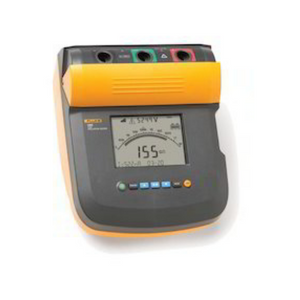

The Fluke 1550C insulation resistance tester offers digital insulation testing up to 5 kV,
making them ideal for testing a wide range of high voltage equipment including
switchgear, motors, generators and cables.
Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with
a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement
storage and PC interface, the 1550C is
the perfect tool for preventative or predictive maintenance programs designed to identify
potential equipment failures before they occur
| General Specifications | ||
| Display | 75 mm x 105 mm | |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 | |
| Charger Input (AC) | 85 V to 250 V ac 50/60 Hz 20 VA | |
| This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only. | ||
| Dimensions | 269 mm x 277 mm x 160 mm (10.6 in x 10.9 in x 6.3 in) | |
| Weight | 3.7 kg (8.2 lb) | |
| Temperature (operating) | -20 C to 50 C (-4 F to 122 F) | |
| Temperature (storage) | -20 C to 65 C (-4 F to 149 F) | |
| Humidity | 80 % to 31 C decreasing linearly to 50 % at 50 C | |
| Altitude | 2000 m | |
| Enclosure sealing | IP40 | |
| Input overload protection | 1000 V AC | |
| Electromagnetic compatibility | EN 61326 | |
| Certifications | ||
| Safety compliance | IEC 61010-1 Overvoltage category II, pollution degree 2 | |
| IEC 61010-2-030 Measurement 600V CAT IIV / 1000V CAT III | ||
| IEC 61557-1, IEC 61557-2 | ||
